C11000 Cu ETP Tooj
C11000 ETP tooj liab yog dab tsi?
Feem ntau cov tooj liab muaj nyob rau hauv kev ua lag luam, electrolytic tough pitch (ETP) tooj liab - coj mus muag raws li C11000 (UNS), CW004A (EN), thiab T2 (GB China) - yog cov conductive heev, ua rau nws yog ib qho khoom siv zoo tshaj plaws rau kev xa hluav taws xob tam sim no rau ntau yam kev siv. Cov tooj liab ntshiab no (yam tsawg kawg 99.9% Cu) yog muab rau hauv ntau yam tempers kom tau raws li cov kev xav tau ntawm txhua yam, feem ntau pom tau tias yog Cu-ETP R200 (Annealed), C11000 H02 / Cu-ETP R240 (Ib nrab-Hard per 5}), thiab Cu{124} (R{124}) cov qauv thoob ntiaj teb.
Khoom ntawm ETP Copper (C11000 Copper)
ETP tooj liab tuaj yeem pom nyob rau hauv ntau lub tshuab hluav taws xob. Cov khoom siv tau zoo ua rau nws zoo - haum rau kev siv hluav taws xob thiab kev lag luam. C11000 tooj liab cov yam ntxwv tshwj xeeb suav nrog:
Workability thiab formability.ETP tooj liab yog qhov ua haujlwm tau zoo ntawm qhov kub thiab txias, nrog Vickers hardness (HV) ntau ntawm 45 txog 155.
Solderability.ETP tooj liab yog solderable heev, uas ua rau nws zoo tagnrho rau lub tsev circuitry thiab lwm yam hluav taws xob Cheebtsam.
Kev coj ua.Ntxiv nrog rau kev muab cov thermal conductivity siab, ETP tooj liab muaj hluav taws xob conductivity txog li 101% IACS.
Corrosion kuj.Zoo li feem ntau cov khoom siv tooj liab, ETP tooj liab yog qhov tiv taus corrosion heev.
Compatibility nrog kev kho cua sov.ETP tooj liab tuaj yeem ua kom sov-kho lossis annealed los txhim kho nws cov kev ntxhov siab.
Kev rov ua dua tshiab.Cov khoom siv kuj yog ib qho kev xaiv ruaj khov raws li nws rov ua dua tshiab.
Muaj Cov Ntawv C11000 Copper

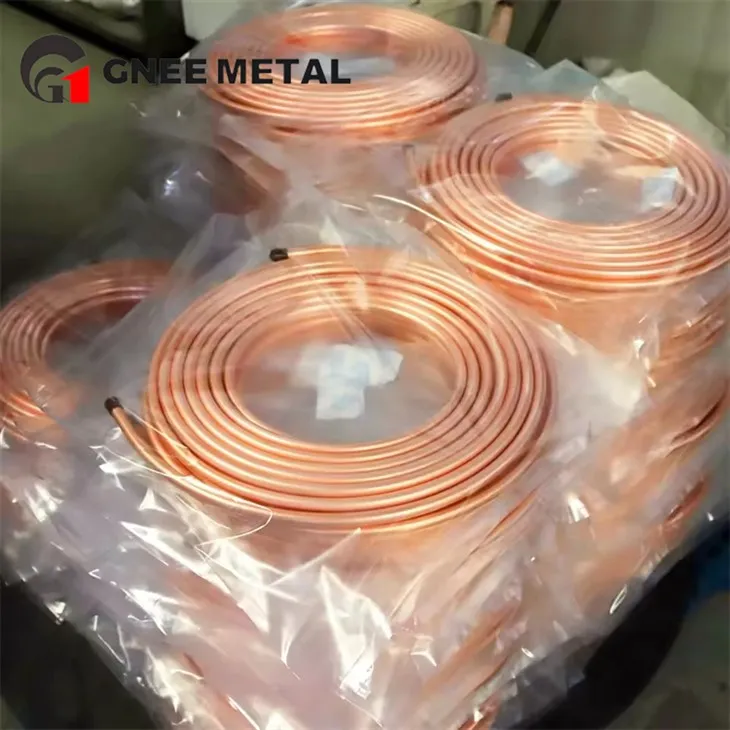

C11000 CU ETP Tubing
Qauv:ASTM B75, ASTM B88, ASTM B280
Common Specs:OD. 3mm ~ 100mm +, Phab ntsa Thickness 0.5mm ~ 3mm, Coils lossis Ncaj Ntev
Cov ntawv thov raug:Cov tub yees & AC Systems, Dej kav dej, Hydraulic Lines, Kub Exchangers
C11000 CU ETP daim ntawv
Qauv:ASTM B152, ASTM B248M
Common Specs:Thickness 0.5mm ~ 50mm, Dav mus txog 2000mm
Cov ntawv thov raug:Architectural Roofing, Busbars, Cookware, Fabricated Tanks
C11000 CU ETP Rods
Qauv:ASTM B187, ASTM B124
Common Specs:Txoj kab uas hla 3mm ~ 100mm +, Round, Square, Hexagonal Shapes
Cov ntawv thov raug:Machined Parts (Busbars, Connectors), Fasteners, Forgings
C11000 CU ETP Strips
Qauv:ASTM B152, ASTM B124
Common Specs:Thickness 0.05mm ~ 3.0mm, Dav mus txog 500mm, Muab nyob rau hauv Coils
Cov ntawv thov raug:Hluav taws xob tiv tauj, Spring Contacts, RFI Shielding, Terminals
C11000 CU ETP Cov Hlau
Qauv:ASTM B1, ASTM B3
Common Specs:Txoj kab uas hla 0.05mm ~ 10mm, Annealed lossis Hard Drawn, nkag rau hauv Coils
Cov ntawv thov raug:Hluav taws xob thaiv, Cables, Magnet Hlau, Ntsia Hlau Tshuab Tshuag
C11000 CU ETP Ntawv Nyiaj
Qauv:ASTM B 152
Common Specs:Thickness <0.05mm, muab rau hauv Rolls lossis Ntawv
Cov ntawv thov raug:Printed Circuit Boards (PCB), Electromagnetic Shielding, hniav laminates
Lub cev muaj zog ntawm C11000 tooj liab
| Khoom | Tus nqi |
|---|---|
| Qhov ntom | 8.94 g/m² |
| Modulus ntawm Elasticity | 110-130 GPa |
| Melting Point | 1083 degree |
| Thermal Expansion | 16.5 µm/m - degree |
| Thermal conductivity | 401 W/m-K |
| Hluav taws xob Resistivity | 1.724 x 10^-8 Ω·m |
Mechanical Properties ntawm C11000 Copper
| Khoom | Tus nqi (Annealed) | Tus nqi (Half Hard) |
|---|---|---|
| Tensile zog | 210 MPa | 250 MPa |
| Yield zog | 69mpa ua | 186 MPa ua |
| Elongation | 45% | 12% |
| Hardness (Brinell) | 50 HB | 80 HB |
Hluav taws xob cov khoom ntawm C11000 tooj liab
| Hluav taws xob khoom | Tus nqi |
|---|---|
| Hluav taws xob conductivity | 101% IAB |
| Hluav taws xob Resistivity | 1.724 x 10^-8 Ω·m |
Thermal Properties ntawm C11000 Copper
| Thermal khoom | Tus nqi |
|---|---|
| Thermal conductivity | 401 W/m-K |
| Tshwj xeeb kub muaj peev xwm | 0.385 J/g-K |
| Thermal Expansion | 16.5 µm/m - degree |
Cov khoom siv ntawm C11000 tooj liab
| Txheej txheem | Kev tsim nyog |
|---|---|
| Tshuab dhos | Zoo heev |
| Vuam | Zoo |
| tsim | Zoo heev |
| Annealing | Tsim nyog |
Component Elements Properties ntawm C11000 Copper
| Element | Feem pua (%) |
|---|---|
| Copper (Cu) | 99.9% tsawg kawg nkaus |
| Cov pa oxygen (O) | 0.02-0.04% |
C11000 Electrolytic Copper Daim Ntawv Thov
Raws li cov khoom siv tooj liab ntau tshaj plaws, cov npe ntawm cov ntawv thov rau ETP tooj liab yog ntev dhau los sau ntawm no. Txawm li cas los xij, ntawm no yog qee qhov piv txwv ntawm kev siv ntau rau hom tooj liab no:
Busbars.ETP tooj liab busbars yog siv rau kev faib hluav taws xob hauv kev teeb tsa hluav taws xob.
Lub cev muaj zog windings.ETP tooj liab yog siv rau coils nyob rau hauv lub cev muaj zog windings los txhim kho hluav taws xob efficiency.
Transformer windings.Cov tooj liab no muaj txiaj ntsig zoo rau kev siv hauv cov ntawv ci- cov kab mob hloov pauv hauv cov hluav taws xob xa hluav taws xob thiab cov vaj huam sib luag vim nws tsis tshua muaj kev cuam tshuam rau cov hlau qaug zog dua li lwm cov hlau.
Vuam fixtures.ETP tooj liab feem ntau siv rau hauv vuam fixtures vim nws zoo heev thermal conductivity.
Anodes.ETP tooj liab anodes muaj nuj nqis rau lawv cov conductivity siab thiab siv nyob rau hauv ib tug ntau yam ntawm hluav taws xob arrays.
Grounding hlua.Cov hlau yog qhov kev xaiv zoo tshaj plaws rau cov hlua khi hauv av ntawm ntau yam khoom siv vim nws cov hluav taws xob hluav taws xob siab.
Commutators.Cov ETP tooj liab Cheebtsam no ua kom cov kev taw qhia zoo nyob hauv lub cev muaj zog lossis lub tshuab hluav taws xob.
Cov khoom siv hluav taws xob ntxiv.Ntxiv rau cov khoom saum toj no, ETP tooj liab kuj tseem tuaj yeem koom nrog hauv kev tsim cov khoom hauv qab no: cov khoom siv hluav taws xob, kev sib cuag, hloov qhov chaw, cov khoom siv hluav taws xob, cov ntaub thaiv npog, thiab cov ntaub qhwv cable.
Cov khoom lag luam.Thaum kawg, ETP tooj liab yog qhov zoo rau cov khoom lag luam xws li xuas nrig ntaus lossis stamped hlau Cheebtsam, cov dab dej kub, thiab cov roj teeb chlorine.
Sib piv: C11000 Copper vs. Lwm cov tooj liab Alloys
| Khoom siv | Hluav taws xob conductivity | Corrosion Resistance | Daim ntawv thov |
|---|---|---|---|
| C11000 tooj | Siab heev (101% IACS) | Zoo heev | Hluav taws xob, industrial Cheebtsam |
| C12200 tooj liab (DHP) | Siab (97% IACS) | Zoo heev | Cov kav dej, HVAC, cua sov exchangers |
| C10200 tooj liab (Oxygen{1}}Free) | Siab heev (101% IACS) | Superior | High -cov khoom siv hluav taws xob muaj tseeb |
Daim ntawv teev nqi rau C11000 tooj liab (hauv USD ib kg)
| Yam khoom | Tus nqi ntau (USD / kg) |
|---|---|
| C11000 Copper Sheets & Phaj | $8.0 – $9.5 |
| C11000 Copper Pipes & Tubes | $9.0 – $11.0 |
| C11000 Copper Bars & Qws | $8.5 – $10.0 |
Cog thiab khoom siv
Ntim thiab shipping
Founded hauv 2008, peb yog ib tug premier tsum thiab distributor nrog dav thoob ntiaj teb kev lag luam kev txawj ntse, tshwj xeeb nyob rau hauv siab - zoo C11000 ETP tooj liab. Leveraging cov chaw tsim khoom siab heev, peb muab cov khoom lag luam zoo-los ntawm C11000 nyias- cov phab ntsa tooj liab tubing thiab C11000 tuab tooj liab phaj rau precision C11000 tooj liab strips, C11000 tooj liab ntawv ci, C11000 tooj liab 10s, Cpper rods, thiab C11000 tooj liab xov- muab ntau yam, thoob ntiaj teb-tuaj yeem daws teeb meem rau txhua yam koj xav tau kev coj ua thiab kev lag luam.
