TP1 / C12000 tooj liab yog dab tsi?
C12000 yog ib qho siab -purity phosphorus-deoxidized tooj liab cov khoom siv dav siv hauv kev lag luam xws li hluav taws xob, hluav taws xob, tshuab tsim khoom, thiab kho vaj tse vaj tse. Cov khoom no boasts zoo heev hluav taws xob conductivity, thermal conductivity, ductility, thiab corrosion kuj, ua rau nws tsim nyog rau kev ua nyob rau hauv ntau yam ntaub ntawv, nrog rau cov phaj thiab tuav, kom tau raws li qhov xav tau ntawm ntau haiv neeg daim ntaub ntawv.
Tshuaj muaj pes tsawg leeg
Cov tshuaj muaj pes tsawg leeg ntawm C12000 nruj me ntsis raws li cov qauv thiab feem ntau muaj xws li:
Copper (Cu): Ntau dua lossis sib npaug li 99.9%, ua kom muaj hluav taws xob siab thiab thermal conductivity.
Phosphorus (P): 0.004% -0.012%, ua tus deoxidizer los txhim kho cov khoom purity.
Lwm yam impurities: Cov khoom xws li hlau (Fe) thiab txhuas (Pb) muaj nyob rau hauv cov nqi qis heev, ua kom cov khoom ruaj khov.
Nws cov yam ntxwv impurity tsawg ua rau nws tshwj xeeb tshaj yog nyob rau hauv precision electronics Cheebtsam thiab siab -kub ib puag ncig.
Physical thiab Mechanical Properties
Hluav taws xob conductivity:Conductivity Ntau dua los yog sib npaug rau 98% IACS (International Annealed Copper Standard), ze rau cov qib tooj liab ntshiab, ua rau nws haum rau siab - tam sim no kis tau tus mob scenarios.
Thermal conductivity:Thermal conductivity coefficient Ntau dua los yog sib npaug rau 380 W / (m·K), haum rau cov khoom xws li cov dab dej kub thiab cov khoom siv hluav taws xob.
Mechanical Properties:
Tensile zog: 200-250 MPa (lub xeev annealed).
Elongation: Ntau dua lossis sib npaug li 35%, ua kom pom kev ua tau zoo ntawm cov yas.
Hardness: HV 40-60 (lub xeev mos), uas tuaj yeem nce ntxiv los ntawm kev ua haujlwm txias.
Corrosion Resistance:Pom zoo tiv thaiv corrosion los ntawm huab cua, dej, thiab tsis yog -oxidizing acids, ua rau nws haum rau huab cua los yog tshuaj lom neeg ib puag ncig.
Kev ua thiab daim ntawv thov cheeb tsam
Txheej Txheem Txheej Txheem:C12000 yog ib qho yooj yim rau stamp, khoov, vuam, thiab tshuab, tso cai rau fabrication complex -zoo li tus Cheebtsam.
Cov ntawv thov raug:
Hluav taws xob kev lag luam:Busbars, connectors, hloov hu, thiab lwm yam.
Electronic Devices:Circuit board substrates, shields.
Industrial Components:Thaum tshav kub kub exchanger raj, valve qhov chaw.
Architectural Kho kom zoo nkauj:Roofing daim hlau, kos duab sculptures, thiab lwm yam.
Qhov tseem ceeb Distinctions los ntawm lwm yam Coppers:
vs. C11000 (ETP Copper - Electrolytic Tough Pitch):
C11000 muaj cov pa oxygen (~ 0.04%). Nws yogtsis pom zoo rau vuam los yog siab -kub los txo qhov cua(kev pheej hmoo ntawm hydrogen embrittlement). C12000 yog qhov zoo dua rau kev siv welded.
vs. C12200 (Zoo li DHP tooj liab):
C12200 muaj phosphorus ntau dua me ntsis. Lawv feem ntau suav hais tias hloov pauv tau rau ntau daim ntawv thov, tab sis C12200 yog ntau dua rau cov kav dej.
vs. C10100 / C10200 (Oxygen-Dawb tooj liab):
NTAWM tooj liab muaj ntau dua conductivity (101% IACS) thiab superior ductility. Lawv yog siv rau siab - tshuab nqus tsev electronics thiab tseem ceeb conductors. C12000 yog kev lag luam ntau dua rau cov kav dej dav dav thiab cov khoom siv hluav taws xob.
Sib npaug Cov Qib Table rau C12000 Copper
| Standard System | Qib sib npaug | Lub npe / piav qhia |
|---|---|---|
| UNS (USA) | C12000 | Tus txheej txheem txhais. Phosphorus-deoxidized tooj liab. |
| ASTM (USA) | B152, B124 | Cov qauv qhia tshwj xeeb rau daim ntawv / sawb thiab pas nrig / bar daim ntawv. |
| CDA (USA) | Alloy 120 | Copper Development Association npe. |
| Lub Npe | DHP tooj liab | Deoxidized High Phosphorus - lub npe kev lag luam thoob ntiaj teb. |
| EN (Tebchaws Europe) | Cu-DHP | Niaj hnub nimno European tsim (EN 1652, 12449). |
| ISO | Cu-DHP | International Standard (ISO 431). |
| JIS (Nyiv) | C1201 | Qhov ncaj Japanese sib npaug. |
| BS (UK - Lauv) | C106 | Yav dhau los British Standard rau raj (BS 2875). |
| Tuam Tshoj GB | TP 1 | Qhov ze tshaj plaws ua haujlwm suav sib npaug. Phosphorus-deoxidized tooj liab rau cov raj / kav. |
Nug txog C12000 Nqe & Cov Qauv
Peb cov khoom lag luam
| Yam khoom | Cov ntawv tseem ceeb ntawm cov khoom | Common Standards (Piv txwv) | Hom Kev Siv / Nta |
|---|---|---|---|

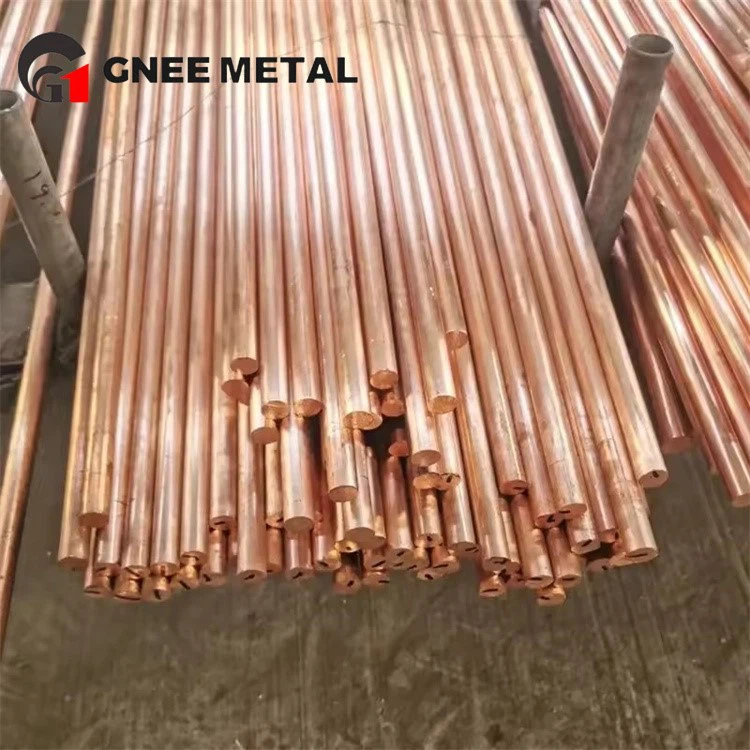

| Copper Rods & Bars | Round Rods, Square Bars, Hexagonal Bars | ASTM B187, C11000, C10200; EN 12163-66; JIS H3250 | Hluav taws xob conductors, machined qhov chaw, connectors, kho vajtse. Muaj nyob rau hauv ntau tempers (mos, nyuaj). |

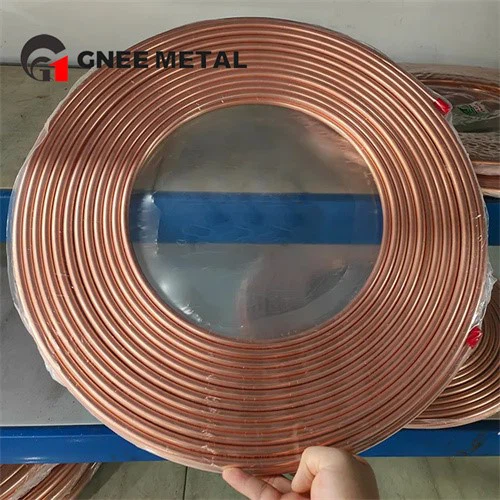

| Copper Tubes & Cov kav dej | Seamless Tubes, Ncaj Ntev, Coils (rau cov raj hloov tau) | ASTM B75, B280, B88; EN 12735; JIS H3300 | Cov kav dej, HVAC / R, cov khoom siv hluav taws xob sib hloov, cov kab hluav taws xob kho mob, cov tshuab hydraulic. |

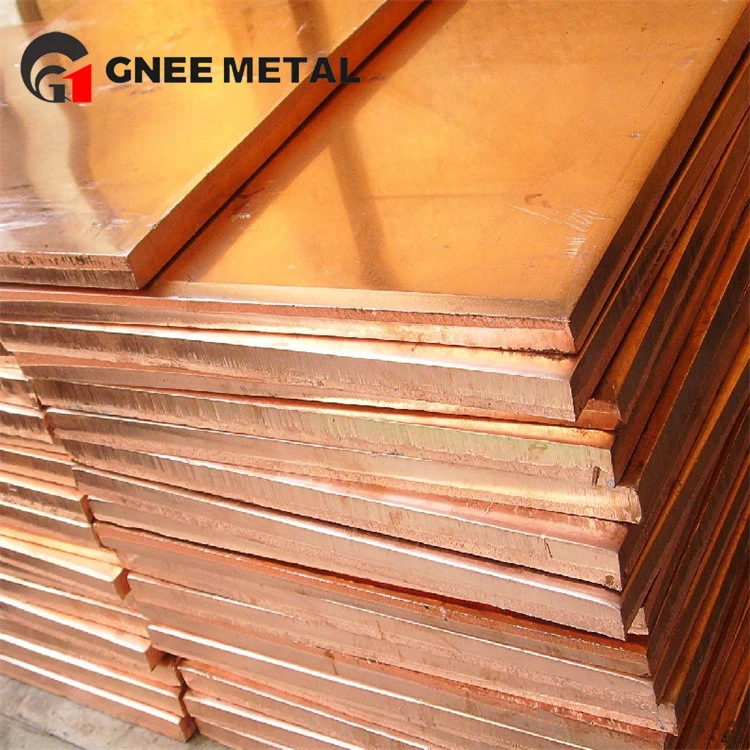

| Copper Phaj & Ntawv | Plates (>6mm thickness), Cov ntawv (<6mm thickness) | ASTM B152, C11000; EN 1652; JIS H3100 | Architectural cladding, industrial fabrication, grounding daim hlau, chemical processing. |

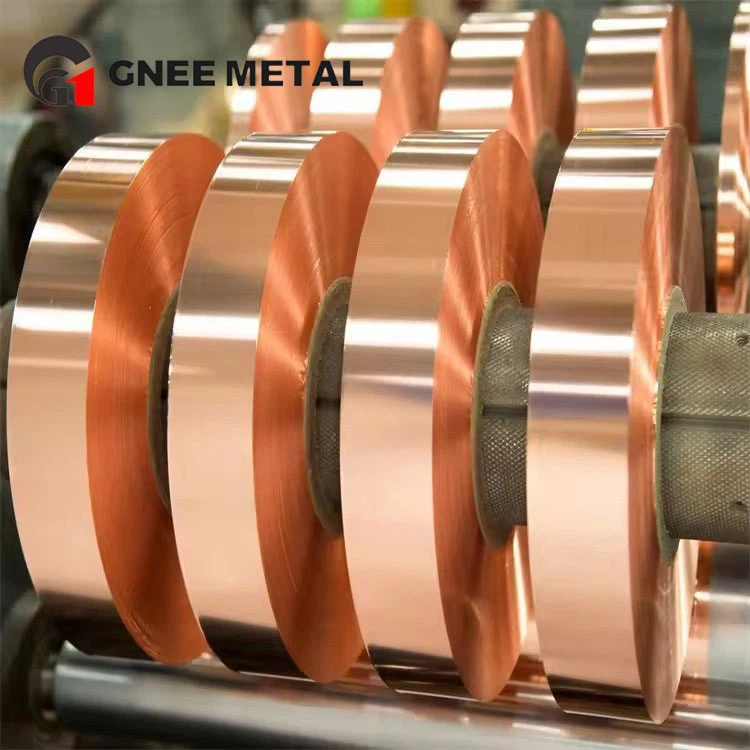

| Copper Strips & Foils | Strips, Rolls, Precision Foils | ASTM B272, C11000; EN 1652; JIS H3100 | Hluav taws xob tiv tauj, transformers, shielding, gaskets, hniav inlays. |
| Tooj Hlau | Tooj liab hlau, Stranded hlau, Busbars | ASTM B1, B3, B187; EN 13601; JIS H3260 | Windings, cables, busbars, fasteners, vuam electrodes. |
Peb lub Hoobkas
Peb yog cov chaw tsim khoom tshwj xeeb ntawm cov khoom siv tooj liab zoo tshaj plaws, suav nrog cov pas nrig, raj, phaj, tuav, xov hlau, thiab strips. Peb lub Hoobkas nruj me ntsis ua raws li cov qauv thoob ntiaj teb xws li ASTM, EN, JIS, thiab GB, ua kom cov khoom ua raws li kev lag luam thoob ntiaj teb. Nruab nrog cov kab ntau lawm niaj hnub- suav nrog kev nruam nruam rau cov pas nrig, cov tshuab kos duab txias rau cov raj, thiab cov rolling precision mills rau strips -peb tswj nruj tswj qhov ntev thiab kam rau ua. Txhua batch tau nruj me ntsis hauv- kev sim hauv tsev siv cov spectrometers rau tshuaj muaj pes tsawg leeg, tensile testers rau mechanical zog, thiab eddy tam sim no testers rau kev kuaj xyuas tsis raug. Peb lub chaw soj nstuam zoo tau lees paub cov khoom siv tau zoo, txhim khu kev qha rau hluav taws xob, tsheb, thiab kev siv engineering thoob ntiaj teb.
