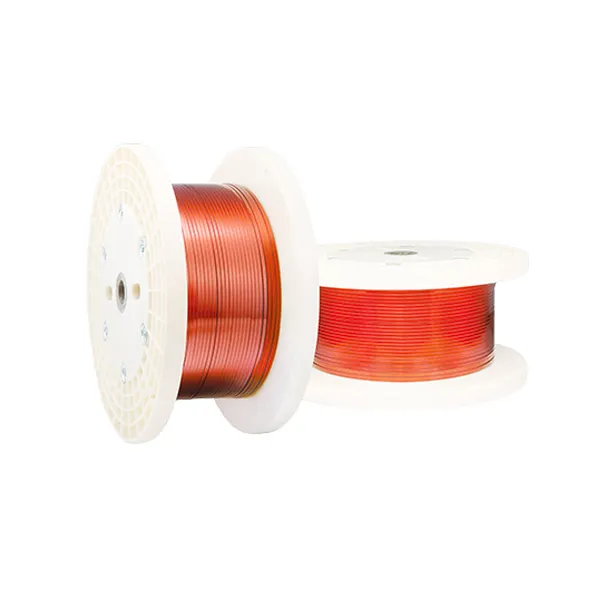

Phaj Magnet Hlau

Lub enameled rectangular tooj liab hlau uas tsim los ntawm peb lub tuam txhab tuaj yeem siv rau cov winding coils ntawm tsav motors, transformers, motors, generators thiab ntau yam khoom siv hluav taws xob ntawm lub zog tshiab. Yog tias koj tab tom nrhiav rau cov khoom siv hluav taws xob enameled, tsis txhob yig tiv tauj peb kom tau txais tus nqi tshiab!

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

Phaj Magnet Wire Performance Advantages

Zoo heev conductivity thiab thermal stability

Scratch kuj

Solvent resistance

Zoo tiv thaiv kom sov dissipation thaum raug mob rau hauv ib lub xaim

High magnetic teb efficiency

Plate Magnet Wire Application Fields

New Energy Drive Motor

Tshiab Zog Tsav Tsav Tsav

Engine

Cav

Phaj Magnet Wire Performance Parameter

Thermal qib		Qauv		Specification ntau yam	Txuj
code	qib	npe	qauv	mm² os	IEC	GB / T	NEMA	JIS
B	130	Class 130 polyester enameled tooj liab ca hlau	QZ Bx/130	1.5mm² {2}}mm² 1.2: 1 Tsawg dua lossis sib npaug rau qhov dav dav qhov sib piv Tsawg dua lossis sib npaug rau 8: 1	60317	7095.7	-	*
F	155	Qib 155 polyester enameled tooj liab ca hlau	QZ Bx/155	1.5mm² {2}}mm² 1.2: 1 Tsawg dua lossis sib npaug rau qhov dav dav qhov sib piv Tsawg dua lossis sib npaug rau 8: 1	60317-16	7095.3	-	*
H	180	Polyester imide enameled tooj liab ca hlau, chav kawm 180	QZYB-x/180	1.5mm² {2}}mm² 1.2: 1 Tsawg dua lossis sib npaug rau qhov dav dav qhov sib piv Tsawg dua lossis sib npaug rau 8: 1	60317-28	7095.4	-	*
C	200/220	Qib 200 polyester imide / polyamide imide composite enamelled tooj liab ca hlau qib 220 polyamide imide enamelled tooj liab ca hlau	Q(ZY/XY) Bx/200QXYB-X/200	1.5mm² {2}}mm² 1.2: 1 Tsawg dua lossis sib npaug rau qhov dav dav qhov sib piv Tsawg dua lossis sib npaug rau 8: 1	60317-29	7095.6	MW 36-C	*
C	240	Class 240 polyimide enameled tooj liab ca hlau	QYB-x/240	1.5mm² {2}}mm² 1.2: 1 Tsawg dua lossis sib npaug rau qhov dav dav qhov sib piv Tsawg dua lossis sib npaug rau 8: 1	60317-47	7095.5	MW 20-C	*
