C10200 tooj liab electroplating
Copper plating yog txheej txheem kev kho saum npoo uas siv los tiv thaiv cov hlau, txhim kho hluav taws xob conductivity, thiab ua kom zoo nkauj. Cov txheej txheem yooj yim ntawm tooj liab plating suav nrog cov kauj ruam xws li kev npaj cov khoom ua haujlwm, kev kho deg, anodizing, tu thiab ziab. Nyob rau hauv cov txheej txheem no, C10200 tooj liab alloy, vim nws cov hluav taws xob conductivity thiab zoo plasticity, tej zaum yuav siv tau raws li ib tug anode cov ntaub ntawv los tsim ib tug uniform tooj liab plating txheej ntawm lub workpiece.
Kev muab khoom ntawm C10200 electroplating tooj liab phaj nrog cov khoom zoo heev
| Cov ntsiab lus | ||
|---|---|---|
| Cu(1,2,3) | O | |
| (1) Cu yog txiav txim los ntawm qhov sib txawv ntawm cov impurity tag nrho thiab 100%. (2) Qhov no yog ib tug high conductivity tooj liab uas muaj, nyob rau hauv lub annealed mob qhov tsawg kawg nkaus conductivity ntawm 100% IACS tshwj tsis yog rau Alloy C10100 uas muaj qhov tsawg kawg nkaus conductivity ntawm 101% IACS. (3) Cu tus nqi suav nrog Ag. |
||
| Min (%) | 99.95 | |
| Max (%) | 0.0010 | |
| Melting Point - Liquidus degree F | 1981 |
|---|---|
| Melting Point - Solidus degree F | 1981 |
| Densitylb/cu in. ntawm 68 degree F | 0.323 |
| Specific Gravity | 8.94 |
| Hluav taws xob conductivity% IACS ntawm 68 degree F | 101 |
| Thermal ConductivityBtu / sq ft / ft hr / degree F ntawm 68 degree F | 226 |
| Coefficient ntawm Thermal Expansion 68-21210 rau -6 fais fab ib degree F (68 - 212 degree F) | 9.4 |
| Coefficient ntawm Thermal Expansion 68-39210 rau -6 fais fab ib degree F (68 - 392 degree F) | 9.6 |
| Coefficient ntawm Thermal Expansion 68-57210 rau -6 fais fab ib degree F (68 - 572 degree F) | 9.8 |
| Tshwj xeeb Thaum tshav kub kub CapacityBtu / lb / degree F ntawm 68 degree F | 0.092 |
| Modulus ntawm Elasticity hauv Tensionksi | 17000 |
| Modulus ntawm Rigidityksi | 6400 |

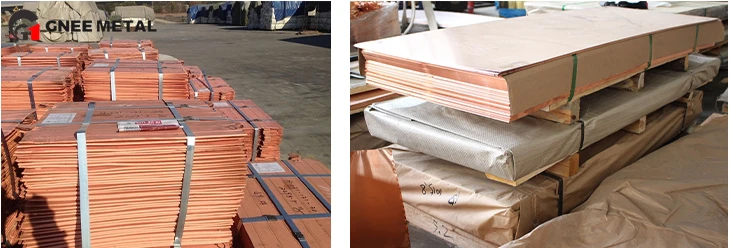

C10200 electroplating tooj liab phaj ntim
FAQ
Yuav ua li cas cov hluav taws xob conductivity ntawm C10200 electroplated tooj liab cuam tshuam?
Cov hluav taws xob conductivity ntawm C10200 electroplated tooj liab tuaj yeem cuam tshuam los ntawm cov khoom paug, ua rau muaj kev nce hauv nws cov hluav taws xob tiv thaiv. Yog li ntawd, nws yog ib qho tseem ceeb uas yuav tsum ua kom lub ntsej muag tooj liab kom huv si. Yog tias cov tooj liab tau raug kab mob, nws tuaj yeem raug ntxuav los ntawm kev siv tshuaj ntxuav lossis tshuab polishing.
Dab tsi cuam tshuam rau thermal conductivity ntawm C10200 electroplated tooj liab?
Lub thermal conductivity ntawm C10200 electroplated tooj liab tuaj yeem cuam tshuam los ntawm qhov kub thiab txias, ua rau txo qis hauv nws cov thermal conductivity. Txhawm rau txhim kho nws cov thermal conductivity, thermally conductive txheej, xws li thermally conductive adhesive lossis silver paste, tuaj yeem siv rau ntawm qhov chaw tooj liab, thiab qhov kub thiab ib puag ncig uas siv tooj liab tuaj yeem tswj tau.
Yuav muaj teeb meem dab tsi hauv kev ua thiab siv C10200 electroplated tooj liab?
C10200 Electroplated Copper tej zaum yuav muaj oxidation los yog corrosion thaum ua thiab siv, feem ntau vim tooj liab nws tus kheej raug rau oxidation los yog corrosion. Tsis tas li ntawd, deformation lossis tawg tuaj yeem tshwm sim vim qhov tsis muaj zog ntawm tooj liab. Txhawm rau daws cov teeb meem no, cov yeeb yaj kiab tiv thaiv, xws li pleev xim lossis plating, tuaj yeem siv rau ntawm tooj liab, thiab tooj liab tuaj yeem ntxuav thiab khaws cia tsis tu ncua.
Cim npe nrov: C10200 tooj liab electroplating, Tuam Tshoj c10200 tooj liab electroplating manufacturers, lwm tus neeg, Hoobkas
