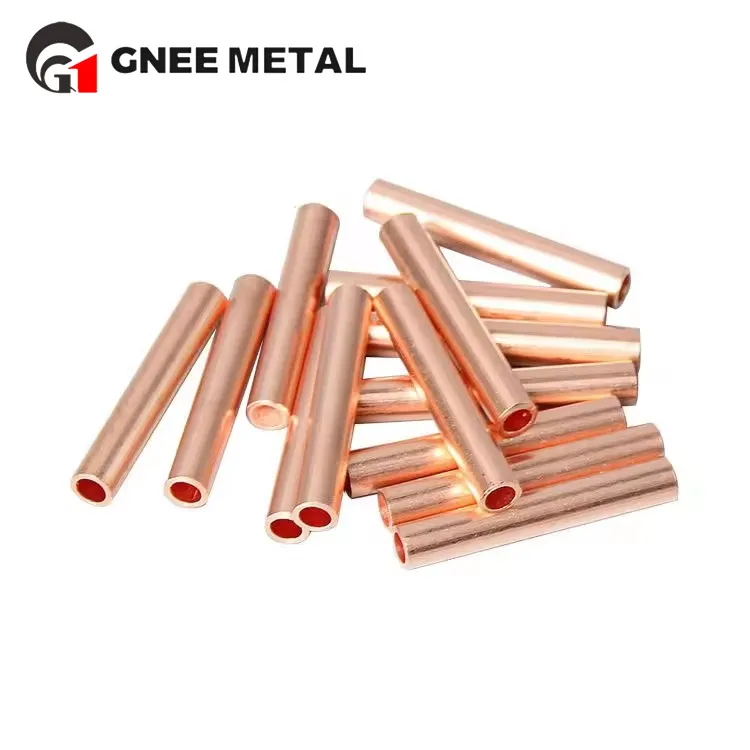

Nyias Phab Ntsa C95800 Copper Tubing
C95800 nyias-walled tooj liab raj muaj lub zog siab tom qab kev kho cua sov, thiab lub zog tensile tuaj yeem ncav cuag ntau dua 400MPa. Vim qhov sib ntxiv ntawm cov ntsiab lus xws li zinc thiab txhuas, C95800 tooj liab hlau raj muaj qhov zoo dua corrosion kuj nyob rau hauv cov huab cua, seawater thiab ntau yam acid thiab alkali ib puag ncig.Qhov hluav taws xob conductivity ntawm C95800 tooj liab alloy yog thib ob tsuas yog tooj liab ntshiab, nrog siab conductivity, haum rau ua cov khoom siv hluav taws xob thiab cov khoom siv hluav taws xob.
Qhov tseeb technology los tsim C95800 nyias-walled tooj liab raj
C95800 Copper Pipe Chemical Composition thiab Physical Properties
Tshuaj muaj pes tsawg leeg
| Lub ntsiab | Cov ntsiab lus ntau (wt.%) |
|---|---|
| Copper (Cu) | Tshuav |
| Nickel (Ni) | 4.0 - 5.0 |
| Aluminium (Al) | 8.5 - 10.0 |
| Hlau (Fe) | 4.0 - 5.0 |
| Manganese (Mn) | 0.8 - 2.5 |
| Silicon (Si) | Tsawg dua lossis sib npaug rau 0.15 |
| Lead (Pb) | Tsawg dua lossis sib npaug rau 0.02 |
| Cov pa roj carbon (C) | Tsawg dua lossis sib npaug rau 0.10 |
| Lwm yam impurities | Tsawg dua lossis sib npaug rau 1.0 (Tag nrho) |
Lub cev muaj zog
| Khoom | Kev piav qhia |
|---|---|
| Qhov ntom | Kwv yees li 8.9 g / cm³ |
| Thermal conductivity | Siab |
| Hluav taws xob conductivity | Siab |
| Tensile zog | Ntau dua lossis sib npaug li 630 MPa |
| Yield zog | Ntau dua lossis sib npaug li 250 MPa |
| Elongation | Nruab nrab |
| Hardness | Nruab nrab mus rau siab |
| Thermal stability | Zoo |
| Corrosion Resistance | Zoo heev nyob rau hauv seawater, acidic, thiab alkaline ib puag ncig |
| Hnav Resistance | Zoo |
| Machineability | Ncaj ncees rau Zoo |
C95800 conductive tooj liab raj yog dav siv hauv cov nram qab no:
1. Cov khoom siv hluav taws xob: vim nws cov khoom siv hluav taws xob siab, C95800 tooj liab tubes feem ntau yog siv los ua cov khoom siv hluav taws xob xws li cov khoom siv hluav taws xob xa mus, switchgear thiab lub cev muaj zog rotors.
2. Marine engineering: Kev tiv thaiv corrosion ntawm C95800 AC tooj liab raj ua rau nws siv dav hauv kev lag luam marine engineering, xws li cov nkoj nkoj, cov khoom siv seawater desalination, marine detectors thiab lwm yam.
Ntim ntawm C95800 corrosion resistant tooj liab raj
Vim li cas thiaj xaiv peb C95800 mos tooj liab raj
Pab neeg Advantage
Peb muaj ib pab neeg ntawm cov kws tshaj lij uas tau cog lus los muab cov khoom zoo thiab cov kev pabcuam zoo rau peb cov neeg siv khoom. Peb pab neeg muaj cov hauv qab no zoo dua peb cov neeg sib tw:
Kev txawj ntse: Peb pab neeg muaj kev paub zoo tshaj plaws hauv kev tsim cov khoom siv tooj liab.
Kev paub: Peb pab neeg muaj ntau xyoo dhau los hauv kev lag luam thiab kev nkag siab tob txog kev lag luam.
Customer Oriented: Peb yog cov neeg siv khoom taw qhia thiab ua ntej peb cov neeg siv khoom xav tau.
Teb: Peb pab neeg teb thiab muaj peev xwm daws tau cov teeb meem uas tshwm sim sai sai.
Kev sib txuas lus: Peb muaj kev sib txuas lus zoo heev thiab ua kom peb cov neeg siv khoom paub thoob plaws hauv cov txheej txheem tsim khoom.
Cim npe nrov: Tuam Tshoj nyias phab ntsa c95800 tooj liab tubing, Tuam Tshoj nyias phab ntsa c95800 tooj liab tubing manufacturers, lwm tus neeg, Hoobkas
