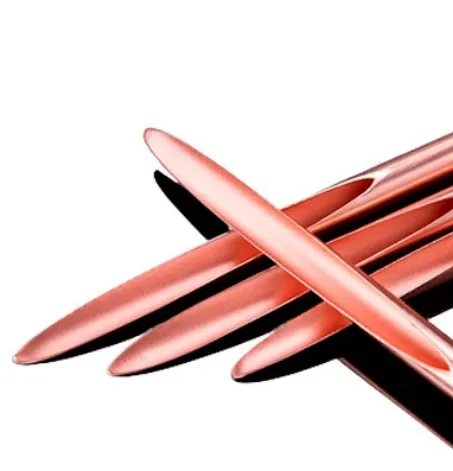

Internal grooved Copper Tube

Qhov no yog ib sab hauv grooved tooj liab raj los ntawm Tuam Tshoj Gnee Group. Internal grooved raj yog ib hom tooj liab raj feem ntau siv nyob rau hauv lub tshuab cua txias thiab tub yees. Raws li ib qho ntawm cov khoom siv tooj liab, cov raj tooj liab sab hauv yog siv dav hauv ntau yam kev siv uas qhov kev hloov pauv hluav taws xob zoo yog qhov tseem ceeb.

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

Hais txog Internal-grooved tooj liab raj

Internal-grooved tooj liab raj, tseem hu ua "microfin tubes", yog ib tug me me txoj kab uas hla coil tshuab rau niaj hnub cua txias thiab tub yees tshuab.

Grooved coils pab txhawb kev hloov pauv kom zoo dua li cov coils du.Nrog MicroGroove thev naus laus zis, kev hloov hluav taws xob hloov kho kom zoo dua los ntawm kev sib tw sab hauv ntawm lub raj. Qhov no ua rau kom qhov chaw rau qhov sib piv, sib tov cov tub yees, thiab homogenizes refrigerant kub thoob plaws lub raj.Me me txoj kab uas hla coils muaj tus nqi ntawm tshav kub hloov dua siab tshiab condenser thiab evaporator coils nrog puag ncig tooj liab raj thiab txhuas los yog tooj liab fin uas tau ua. tus qauv hauv HVAC kev lag luam tau ntau xyoo.

Cov kab me me tuaj yeem tiv taus qhov siab dua qhov xav tau los ntawm lub cim tshiab ntawm ib puag ncig tus phooj ywg refrigerants. Lawv muaj cov nqi qis dua vim tias lawv xav tau cov tub yees tsawg dua, fin, thiab cov khoom siv coil. Lawv pab tsim kom muaj qhov me me thiab sib zog ua kom muaj cua txias thiab lub tub yees vim tias cov evaporator thiab condenser coils me dua thiab sib dua.

Inneral Grooved Copper Tube Technical Information
Sab nraud txoj kab uas hla (mm)	Phab ntsa Thickness (mm)	Groove Qhov tob Hf (mm)	Fin Angle z (degree)	Helix Angle ßz (degree)	Qhov hnyav (g / m)
4.00	0.2	0.14	20	15	26.8
4.00	0.2	0.16	20	17	26.99
5.00	0.2	0.14	40	18	33
5.00	0.215	0.17	20	18	35.3
7.00	0.24	0.12	12	30	53
7.00	0.24	0.17	20	18	52.6
7.94	0.26	0.2	15	30	71
9.52	0.3	0.14	12	35	85
12.7	0.41	0.25	50	18	164
15.88	0.52	0.3	53	18	267

Hais txog peb

GNEE - Pab pawg muaj ze li ntawm 20 xyoo ntawm kev lag luam kev lag luam thiab yog tus kws tshaj lij kev lag luam mus sij hawm ntev ntawm ntau yam khoom siv tooj liab thiab hlau,

Peb lub tuam txhab tau ua tus neeg sawv cev rau steel mills txij li xyoo 2007, suav nrog Angang, Pugang, Shougang, Xingang, Nangang, Wugang, Jingye Steel, Hegang, thiab lwm yam. Cov khoom lag luam tseem ceeb yog 12 series thiab ntau tshaj 300 hom.

GNEE - Pab Pawg, tus kws tshaj lij ntawm cov khoom lag luam xa tawm tooj liab thiab hlau, hwm cov ntawv cog lus thiab khaws nws cov lus, muab kev pabcuam ib-nres kom koj xaiv tau yooj yim dua.
