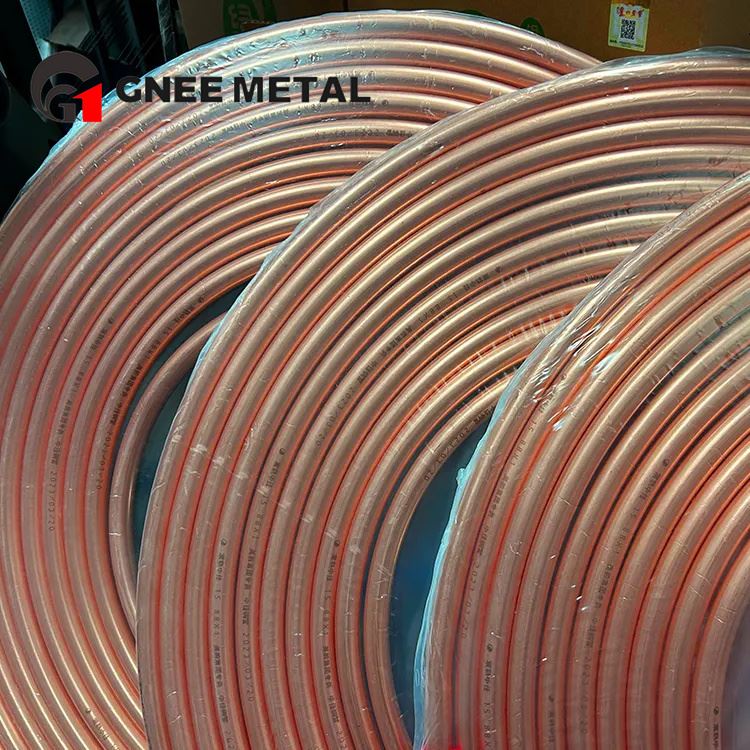

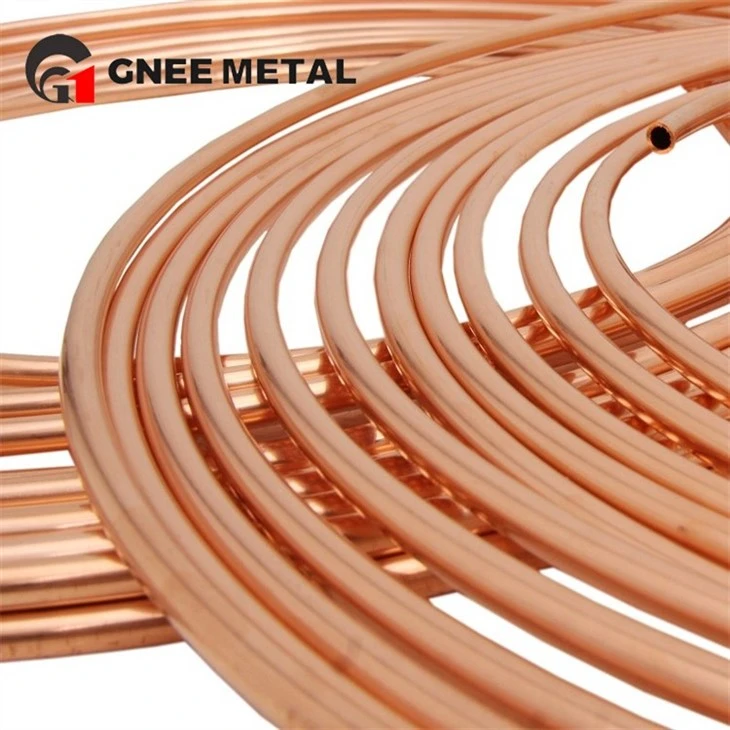

Tooj C10200 Flexible Hose
C10200 Oxygen Free (OF) tooj liab tubing yog tsim los ntawm kev hloov pauv ncaj qha ntawm cov kev xaiv ua kom zoo nkauj cathodes thiab castings nyob rau hauv kev tswj xyuas kom zoo kom tsis txhob muaj cov pa dawb huv ntawm cov hlau thaum ua haujlwm. Txoj kev tsim cov tooj liab tsis muaj oxygen ua kom muaj cov hlau qib siab ultra-siab nrog cov ntsiab lus tooj liab txog li 99.99%. Nrog xws li qib qis ntawm cov ntsiab lus txawv teb chaws, cov khoom muaj txiaj ntsig ntawm cov tooj liab yog siv tag nrho.
Txawm hais tias OF yog suav tias yog tooj liab tsis muaj oxygen, nws cov hluav taws xob conductivity tsis siab tshaj qhov ntau ETP lossis C11000 qib tooj liab. Nws muaj cov ntsiab lus oxygen ntawm 0.001%, purity ntawm 99.95%, thiab qhov tsawg kawg nkaus IACS conductivity ntawm 100%. Cov ntsiab lus nyiaj (Ag) raug suav tias yog tooj liab (Cu) rau lub hom phiaj ntawm purity feem pua.
Sab saum toj Zoo C10200 Mos Copper Tubes
C10200 CHEMICAL COMPOSITION
| Cu | O | |
| Min./Max. | 99,95 nqi | .0010 |
| Nominal | - | - |
Mechanical Property Of Copper C10200 Pipes & Tubes
| Khoom / unit | Qhov xwm txheej | Min | Max |
| Tensile zog (N / mm2) | O | 260 | |
| Elongation hauv 5.65 Hla ntu ntu | O | 32 | |
| Tensile zog (N / mm2) | 1/2H | 290 | |
| Elongation hauv 5.65 Hla ntu ntu | 1/2H | 4 | |
| Tensile zog (N / mm2) | H | 350 |
Qee qhov chaw raug siv C10200, yog raws li hauv qab no: Microwave Tubes, tooj liab rau iav Seals hauv Electronic Appliances, Wave Guides, Bus Conductors, Busbars, Klystrons, Coaxial Cables, Electrical Conductors, Lead In Wire, Transistor Component, Billet Pwm Tube, Coaxial Tube, Extrusion Cans rau hmoov Metallurgy, Nqus Foob, Tubing, LP Gas Service, Tubing, Medical Gas- Oxygen
Kev muab khoom ntawm C10200 me me txoj kab uas hla tooj liab raj nrog kev ua tau zoo heev
Peb lub peev xwm ntau lawm:
Peb muaj cov chaw tsim khoom lag luam niaj hnub nruab nrog cov cuab yeej siv thev naus laus zis thiab cov kws tshaj lij. Qhov no ua rau peb muab cov peev txheej tsim tau zoo kom tau raws li koj cov kev xav tau ntawm cov kav dej.
Hauv qab no yog cov ntsiab lus ntawm peb cov peev txheej tsim khoom:
Kev tsim tawm txhua xyoo: Peb muaj peev xwm tsim tau 8,000 tons ntawm tooj liab ib xyoos twg.
Qhov ntau thiab tsawg: Peb cov kab ntau lawm muaj peev xwm ua tau cov khoom siv tooj liab hauv ntau qhov ntau thiab tsawg.
FAQ
Q: Dab tsi yog peb txoj hauv kev rau kev koom nrog cov tubing tooj liab?
A: Cov kev sib koom ua ke no suav nrog soldering, brazing thiab hluav taws xob tsis kam. Soldered pob qij txha nrog capillary fittings, yog siv nyob rau hauv cov kav dej rau cov kab dej thiab cov dej huv.
Q: Vim li cas lub raj tooj liab thiaj li kim?
A: Copper yog cov txheej txheem kub hauv cov kav dej. Paub txog nws cov kav ntev, nws tuaj yeem kav ntev li 100 xyoo. Cov kav dej tooj liab yog ib txwm tiv taus cov kab mob thiab tsis tshua muaj kev puas tsuaj yog tias raug UV rays. Raws li qhov tshwm sim, tus nqi ntawm cov yeeb nkab tooj liab ntawm ib ko taw tshaj li ntau lwm cov kev xaiv kav dej.
Q: Hom tooj liab tubing yog qhov tuab tshaj plaws?
A: Hom K tooj liab yeeb nkab muaj cov phab ntsa tuab tshaj plaws ntawm txhua hom. Nws yog siv rau kev faib dej, kev tiv thaiv hluav taws, roj, HVAC, thiab ntau lwm yam kev siv hauv kev tsim kho. Hom K yeeb nkab muaj nyob rau hauv cov ntaub ntawv nruj thiab hloov tau.
Cim npe nrov: Copper c10200 saj zawg zog hose, Tuam Tshoj tooj liab c10200 saj zawg zog hose manufacturers, lwm tus neeg, Hoobkas
