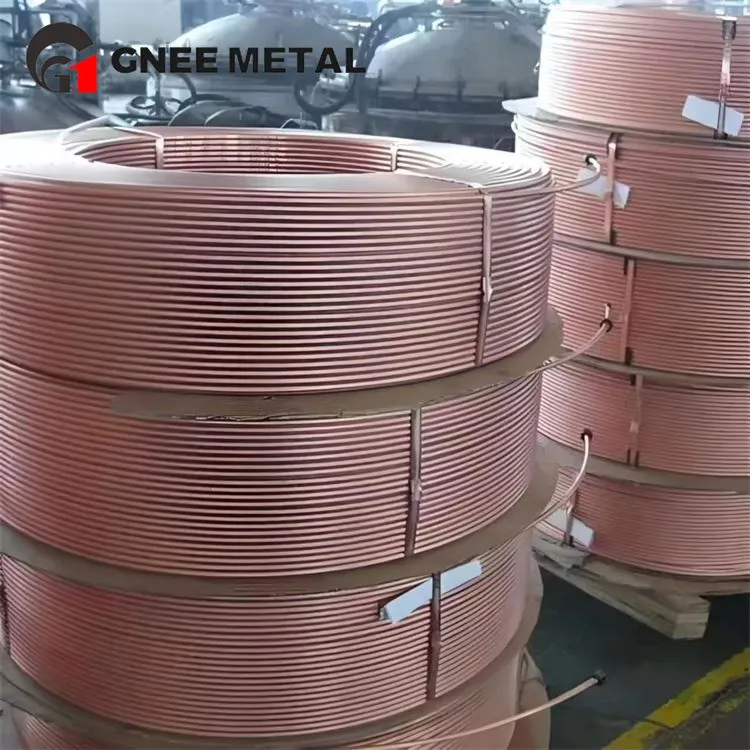

C12000 tooj liab annealed raj
Cov txheej txheem ntau lawm rau C12000 tooj liab annealed raj ua ntxiv ntawm phosphorus mus rau lub tooj liab mus rau desigidize nws, uas yog tom qab ntawd ua tiav rau qhov xav tau thiab qhov loj me. Kev sib piv nrog lwm cov ntawv tooj liab tooj piv nrog lwm cov tooj liab, c12000 phosphorus desagidized tooj liab, thiab yog haum rau cov ntawv thov uas xav tau theem ntawm cov khoom siab.
DLP C12000 Lub Teeb Teeb Yeeb Sib Xws
| Hais Txog | ASTM | Din piv | Siv cov lej | Dind hais lus | Bs | Ib tug kaum | – | Liab | JIS |
|---|---|---|---|---|---|---|---|---|---|
| Cu - dlp | C12000 | Sw - cu | CW023A | 2.0076 | – | Lub teb2 | – | Cu - dlp | – |
C120 Tooj Annealed Tube Lub cev
| Cov nuj nqis raug nyob hauv Annealed npau taws ntawm 20 degree | |||
|---|---|---|---|
| Thermal nthuav tawm coefficiention | 20 .. 300 degree | 17.3 | 10-6/K |
| Ceev | 8.94 g / cm³ | ||
| Thermal conductivity | 375 | W/(m·K) | |
| Kev Kub Loj Tshaj | 0.386 J/(g·K) | ||
| Modulus ntawm elasticity | GPA | 130 | GPA |
| Hluav Taws Xob Kev Tshaj Tawm | IAcs | 95 % | |
| Hluav Taws Xob Kev Tshaj Tawm | Ms / m | 55 | Ms / m |
| Thermal coefficient ntawm cov hluav taws xob tsis kam | ({0 .. 100 degree) | 3.6 | 10-3/K |
Cov Cuab Yeej Siv Cov Neeg Kho Tshuab ntawm CUDLP C12000 Square raj
| Npau taws sai | Tawm los muaj zog tsawg kawg rp0.2 | Elongation yam tsawg kawg A50mm | Lub zog tensile Rm |
Dabtsi yog khoov 90 degree GW BW rel. Dabtsi yog khoov Rawg R / T |
Kev nyuaj HV * |
|
|---|---|---|---|---|---|---|
| MPa% | MPa | Sawb Thickness tsawg dua los yog sib npaug rau 0.50mm | Hv | |||
| R290 | 250 | 4 | 290 .. 360 | 0 | 0 | 90 .. 110 |
| R240 | 180 | 8 | 240 .. 300 | 0 | 0 | 65 .. 95 |
| R220 | Tsawg dua los yog sib npaug rau 140 * | 33 | 220 .. 260 | 0 | 0 | 40 .. 65 |
| R360 | 320 | 2 | Ntau dua los yog sib npaug rau 360 | 0 | 0.5 | Ntau dua los yog sib npaug rau 110 |
Cov chaw thov ntawm C12000 tooj liab annealed Tube:
1. Aerospace: Vim nws lub zog siab thiab zoo corrosion tsis kam,
2. Fais fab hluav taws xob: C12000 tooj liab alloy txoj kev ua kom zoo rau nws cov khoom zoo rau cov khoom siv hluav taws xob, hloov hluav taws xob thiab lwm yam.
3. Architecture Kho kom zoo nkauj: kev zoo nkauj thiab corrosion tsis kam ntawm C12000 lub tshuab kho kom zoo nkauj, xws li lub qhov rooj, qhov rai, ntaub thaiv phab ntsa, thiab lwm yam.
Zoo yog GNEE txoj kev cog lus. Peb tau tsim kom muaj kev tswjhwm nruj thiab muaj cov khoom siv tshuaj ntsuam xyuas cov khoom lag luam tooj liab zoo li cov qauv tooj thoob ntiaj teb xws li ASTM thiab JIS. Cov neeg siv khoom txaus siab tau nyob saum toj 98% rau 5 sib law liag, thiab peb yog ib tug neeg muag khoom ntev ntev 500 lub tuam txhab.
Cim npe nrov: C12000 COPPER annaled raj, Tuam Tshoj C12000 tooj liab annealed raj manufacturers, lwm tus neeg, Hoobkas
